PRODUCTS

Product Showcase

Automation Equipment

Automation Equipment

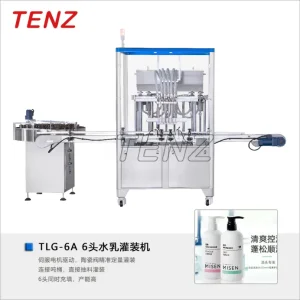

  • Target products
    Cold filling for toners, body washes, shampoos, lotions and other liquid products
    Output
    30–40 units per minute
    Power supply
    220v 50Hz 3.5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. 6-head fixed-point filling
    2. Servo electric cylinder driven piston valve body; ceramic dosing pump delivers precise metering without altering material properties
    3. Lift-type filling mode; filling head with bottle mouth alignment function
    4. 40L stainless steel tank with quick-disconnect fittings for easy disassembly and cleaning
    5. PLC control system paired with HMI for convenient parameter setting
    6. Material suction system draws formula directly from storage tank to filling trough to reduce manual work
    7. Equipped with Ethernet data output port and reserved MAX system interface

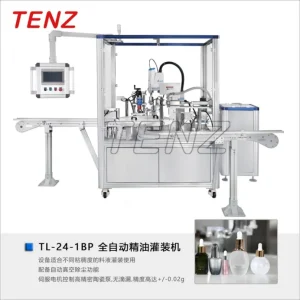

  • Target products
    Cold filling for various sample bottles, e.g. ampoules, dropper bottles, roll-on bottles
    Output
    25–50 pieces per minute
    Power supply
    220v 50Hz 5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Suitable for filling liquids of different viscosities.
    2. Molds and conveyor made of special material to prevent scratches on bottles during production.
    3. Vacuum dust extraction; cleaning process will not compromise the cleanliness of filling stations.
    4. Servo-controlled high-precision ceramic filling pump with no dripping and accurate dosing.
    5. Bottle and cap feeding speed automatically synchronized with filling speed. Simplified operation with independent station adjustment for maintenance and commissioning.
    6. Tankless design; storage tank connected to filling pump via sanitary silicone hose with quick-disconnect fittings for fast disassembly, cleaning and sterilization.
    7. All manually adjustable parts are equipped with graduated scales for parameter archiving.
    8. Robotic pre-capping at cap feeding station to ensure proper cap seating.
    9. Safety guard doors with safety interlock system; automatic stop upon door opening to protect operators.
    10. Controlled by PLC + touchscreen; HMI language can be programmed according to customer requirements.

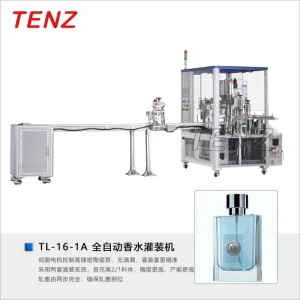

  • Target products
    Perfume (aluminum crimp cap type)
    Output
    25–35 pieces per minute
    Power supply
    220v 50Hz 5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Servo-driven high-precision ceramic filling pump with no dripping and accurate dosing.
    2. Dual filling systems, each delivering half of the formula for higher precision and throughput.
    3. Optional 50L material tank, or tankless direct material suction filling.
    4. Two-stage crimping process to ensure secure cap sealing.
    5. Robot nozzle placement and hose alignment device.
    6. Optional capping station for screw-cap products.
    7. Servo-controlled automatic capping system with adjustable torque.
    8. Material tank connected to filling pump via sanitary silicone hose with quick-disconnect fittings for fast disassembly, cleaning and sterilization.
    9. Circular conveyor for bottle loading and finished product take-off. Reusable jigs ensure operator safety.
    10. All manually adjustable parts equipped with graduated scales for parameter archiving.
    11. Machine fitted with safety guard doors and safety interlock system; automatic stop when door opens to protect operators.
    12. Controlled by PLC + touchscreen; HMI language can be programmed per customer requirements.

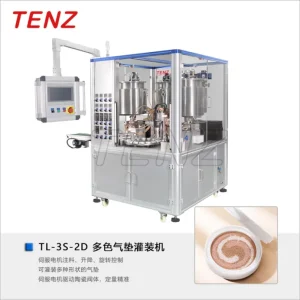

  • Target products
    Filling production for single-color & multi-color cushion BB cream
    Output
    20–25 pieces per minute
    Power supply
    220v 50Hz 3Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Fully servo motor controlled machine operation
    2. Three 25L SUS316L stainless steel tanks
    3. 2 pieces filled in one cycle
    4. Ceramic valve core piston filling system, servo-driven for precise metering
    5. Nozzles customizable for different pattern designs; uniform dispensing without color bleeding
    6. Rotary turntable with reusable molds

END-TO-END ONE-STOP PARTNERSHIP TO ACCELERATE BRAND LAUNCH
