PRODUCTS

Product Showcase

Automation Equipment

Automation Equipment

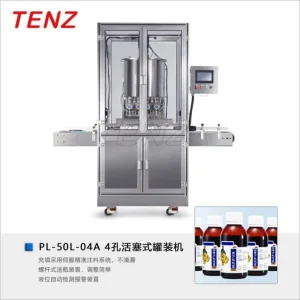

  • Target products
    Large-volume cold filling for lotions, moisturizing toners, sunscreens, primers, oral liquids and similar products
    Output
    40-60pcs/min
    Power supply
    220v 50Hz 2.5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. 4 filling heads working simultaneously. Mainly for mass filling & packaging of water-based and ointment products, also suitable for moderately viscous pastes.
    2. Servo precision dosing system for filling, user-friendly operation.
    3. Formula memory storage function.
    4. Screw bottle feeding unit with simple adjustment.
    5. Automatic liquid level detection and alarm.
    6. 4-head filling; each head can run independently with separate volume adjustment.
    7. Servo motor controlled vertical lifting of the material tank for precise positioning.
    8. All machine parameters are set directly via HMI.
    9. Fully enclosed safety guards to protect operators during production.
    10. All product-contact components are made of food-grade material.

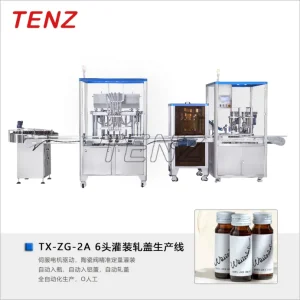

  • Target products
    Aluminum-cap bottles for oral liquid, essence oil and similar products
    Output
    40-50/min
    Power supply
    220v 50Hz 5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. 6 filling heads working simultaneously for high output.
    2. Material suction system draws formula directly from storage tank to filling trough to reduce manual work.
    3. Servo electric cylinder driven piston valve body.
    4. Ceramic valve core for filling pump to deliver precise dosing.
    5. Lift-type filling mode, ideal for foaming-prone products.
    6. Conveyor positioning + lift filling, no jigs required.
    7. Automatic aluminum cap feeding and crimping system for fully automatic production.

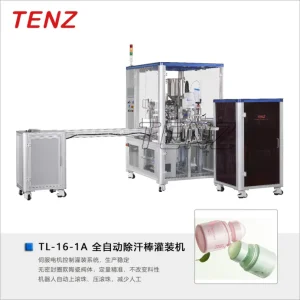

  • Target products
    Room-temperature filling for antiperspirant sticks, lotions, emulsions and similar products
    Output
    25–35 pieces per minute
    Power supply
    220v 50Hz 5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Servo-driven high-precision ceramic filling pump with no dripping and accurate filling volume.
    2. Dual filling systems, each handling 2/1 portion of formula for higher precision and output.
    3. Tankless design; sanitary silicone hose connects to IBC tank for material feeding.
    4. Robot automatic ball loading and ball pressing.
    5. Automatic cap feeding with servo-controlled capping system; torque adjustable.
    6. Circular conveyor for bottle loading and finished product take-off. Reusable jigs ensure operator safety.
    7. All manually adjustable parts come with graduated scales for easy parameter archiving.
    8. Machine fitted with safety guard doors and safety interlock system; automatic stop when door opens to protect operators.
    9. Controlled by PLC + touchscreen; HMI language can be programmed per customer requirements.
