PRODUCTS

Product Showcase

Automation Equipment

Automation Equipment

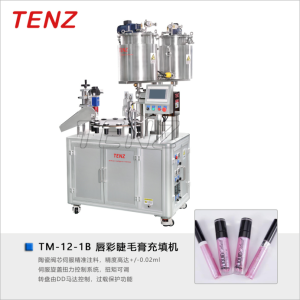

  • Target products
    mascara and lip gloss
    Output
    25–35 pieces per minute
    Power supply
    220v 50Hz 2Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Piston-type servo precise dosing
    2. Servo capping torque control system
    3. Full-screen control of all motion parameters, with built-in cleaning function for easy operation
    4. Recipe-based parameter setting via HMI for convenient and quick adjustment
    5. The machine is standard equipped with a pressure & heating dual-function tank; a pressure-only tank is available as an option

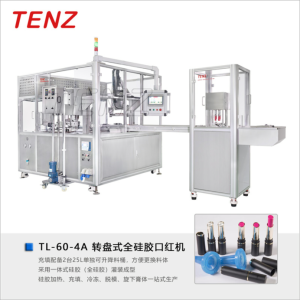

  • Target products
    Standard lipsticks, angled lipsticks, makeup pens, and other silicone-molded products
    Output
    24–32 units per minute
    Power supply
    3Φ-380V 50/60Hz 14Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Compact design and easy operation
    2. Filling system equipped with two separate, height-adjustable hoppers for easy product changeovers
    3. Filling valves feature ceramic valve cores for more precise filling volumes
    4. The refrigeration unit uses eco-friendly refrigerant
    5. The demolding mechanism features full servo control to ensure stable demolding
    6. Utilizes integrated silicone filling and molding; material injection is controlled by a servo piston to ensure precise dosing
    7. The equipment performs an integrated production cycle of automatic heating, filling, freezing, demolding, and unscrewing the lipstick from the mold

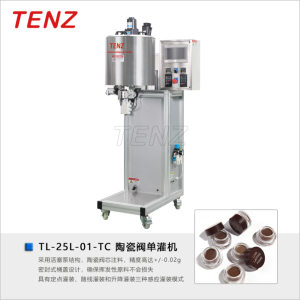

  • Target products
    Hot or cold filling products such as lipsticks, eyeliner creams, eyebrow creams and essential oils
    Output
    20–50 pieces per minute, single operator
    Power supply
    220 50Hz 2.5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Compact size and easy operation
    2. The machine adopts piston pump structure with ceramic valve core for more precise dosing
    3. Sealed tank cover design to avoid loss of volatile raw materials; the tank is a heating and stirring tank
    4. Equipped with HMI operating system, capable of storing at least 20 recipes
    5. Supports sensor filling mode (three types: fixed-point filling, inline filling and lifting filling)
    6. Filling temperature: up to 120±10℃; maximum heating temperature of the tank: 150℃
    7. Matched with 2.5-meter food-grade conveyor line
    8. Equipped with collecting tray for natural cooling buffer of finished products
    9. Optional heated conveyor line to preheat packaging from the bottom of bottles for better product appearance

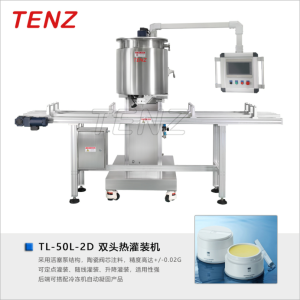

  • Target products
    Hot or cold filling products such as cleansing balms, eyeliner creams and eyebrow creams
    Output
    40–50 pcs/min
    (reference for 10–20g products),
    20–30 pcs/min
     (reference for 90–100g products)
    Power supply
    220v 50Hz 6Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Dual filling nozzles for simultaneous filling to achieve higher output
    2. Servo lifting filling method to ensure bubble-free filling
    3. Precise ceramic valve matched with servo system for dosing, convenient for quantitative adjustment
    4. Recipe memory function for easy parameter modification and storage
    5. Sensor-triggered filling with adjustable filling volume
    6. Touch screen operation interface, supporting continuous or intermittent quantitative filling cycles from 1 to 20 times
    7. Auto cleaning function configurable on screen
    8. Equipped with 2.5-meter dual-channel filling conveyor. Both belt lines can be controlled independently; single-side sensor filling reduces waiting time
    9. Supports sensor filling (three modes: fixed-point filling, inline filling and lifting filling)
