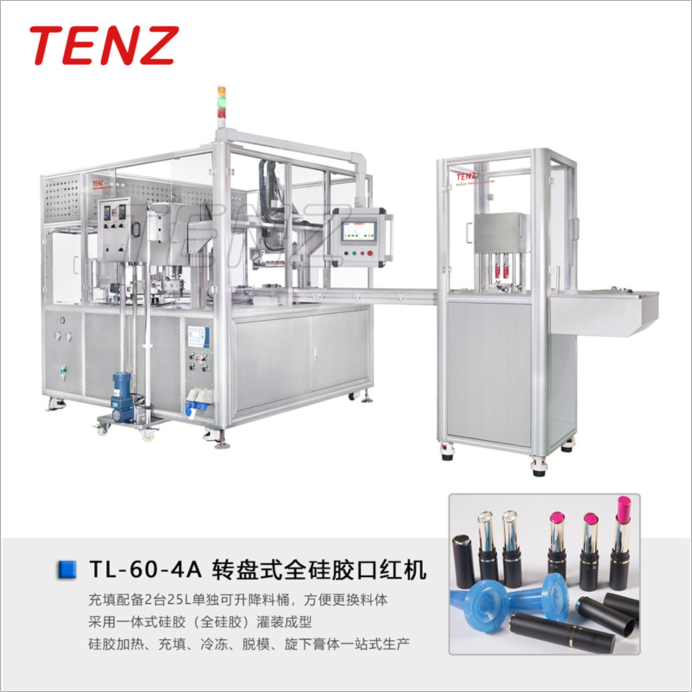

Target products
Standard lipsticks, angled lipsticks, makeup pens, and other silicone-molded products
Output
24–32 units per minute
Power supply
3Φ-380V 50/60Hz 14Kw
Compressed air
0.6-0.8Mpa
Features:
1. Compact design and easy operation
2. Filling system equipped with two separate, height-adjustable hoppers for easy product changeovers
3. Filling valves feature ceramic valve cores for more precise filling volumes
4. The refrigeration unit uses eco-friendly refrigerant
5. The demolding mechanism features full servo control to ensure stable demolding
6. Utilizes integrated silicone filling and molding; material injection is controlled by a servo piston to ensure precise dosing
7. The equipment performs an integrated production cycle of automatic heating, filling, freezing, demolding, and unscrewing the lipstick from the mold
