PRODUCTS

Product Showcase

Automation Equipment

Automation Equipment

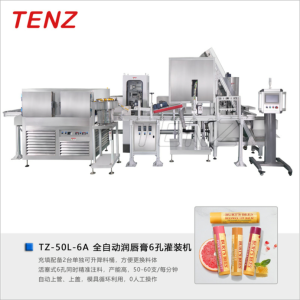

  • Target products
    Direct filling for lip balms,
    gromwell sticks, etc.
    Output
    40–50 pieces per minute, single operator
    Power supply
    220 50Hz 10.5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Frame-type machine structure. The filling station is equipped with two independent liftable tanks for convenient material change
    2. Piston-type servo 6-nozzle simultaneous precise dosing
    3. Automatic tube feeding into molds, photoelectric sensor triggered filling
    4. Automatic surface heat treatment
    5. Automatic feeding into circulating freezing control system
    6. Automatic outer capping with proper pressing
    7. Optional multi-stage reheating or surface cooling
    8. Automatic finished product ejection to reduce manual work

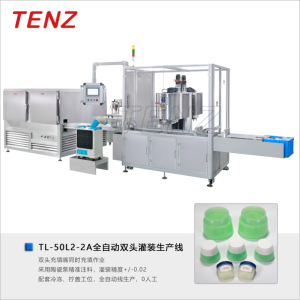

  • Target products
    Quantitative filling production for ointment products such as lipsticks, eyeliner creams and petrolatum-based items; also suitable for filling various containers or molds
    Output
    20–35 pieces per minute
    Power supply
    Filling: 1-phase 220V, 50/60Hz, 6kW
    Freezing: 3-phase 380V, 50/60Hz, 5kW
    Capping: 1-phase 220V, 50/60Hz, 2kW
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Dual filling nozzles for simultaneous filling operation
    2. Servo ceramic valve pump for precise dosing
    3. Equipped with automatic capper to greatly boost production capacity
    4. Dual-tank switching workstation for fast and convenient material change
    5. Servo lifting tank design, suitable for filling different products. It optimizes the pipeline connection between tank and filling pump for easier cleaning
    6. Adopts HMI interactive operation design. All parameters can be adjusted quickly, with recipe memory function for convenient parameter modification and storage

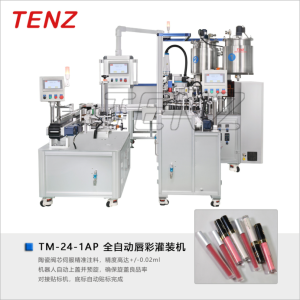

  • Target products
    Mascara and lip gloss
    Output
    30–40 pieces per minute, single operator
    Power supply
    220v 50Hz 5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. The filling pump adopts ceramic valve core for more precise dosing and longer service life
    2. Vibratory bowl for automatic inner plug feeding and automatic plug pressing
    3. Robot for brush and cap placement with pre-capping function to ensure good product yield
    4. Servo motor capping with adjustable torque
    5. Parameter adjustment via touch screen for easier operation
    6. Dual-tank design with pressure and heating functions for wider application
    7. Vibratory bowl system for automatic plug and cap feeding to save labor
    8. The filling machine can connect to a labeling machine at the rear for inline automatic labeling (optional)

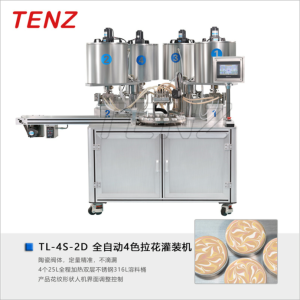

  • Target products
    Heated single-color filling and multi-color swirl filling for pallet and stick products
    Output
    12–30 pieces per minute
    Power supply
    220v 50Hz 5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Ceramic valve body with precise metering, no dripping, compatible with a wide range of formulas
    2. Fully servo-controlled machine operation
    3. Four 25L fully heated double-layer SUS316 stainless steel melting tanks
    4. Tank heating temperature and stirring speed can be adjusted freely
    5. 2 pieces filled in one cycle
    6. Piston filling system with servo drive for precise metering
    7. Mold lifting and rotating filling
    8. Product pattern shape adjustable and controlled via HMI
    9. Rotary turntable for recyclable molds

END-TO-END ONE-STOP PARTNERSHIP TO ACCELERATE BRAND LAUNCH
