PRODUCTS

Product Showcase

Automation Equipment

Automation Equipment

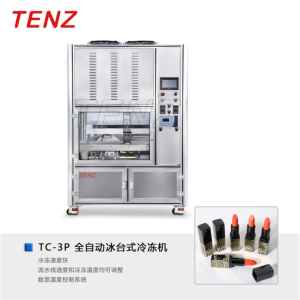

  • Target products
    Cooling and solidification for lipsticks, lip balms in silicone or metal molds
    Power supply
    380 50Hz
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Adopts a unique mold conveying mechanism to ensure consistent freezing time after molds enter the machine
    2. Automatic mold shifting; no molds will remain inside the machine even with a single mold
    3. Unique machine design to accommodate a large number of molds for freezing while greatly reducing the machine footprint

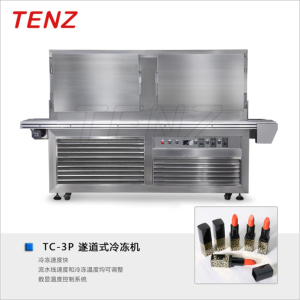

  • Target products
    Solidification and forming for lipsticks, lip balms and various hot filling products
    Power supply
    380 50-60Hz 5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. The machine adopts circulating conveyor freezing
    2. Fast freezing speed
    3. Conveyor speed and freezing temperature can be adjusted according to different products
    4. Digital display temperature control system

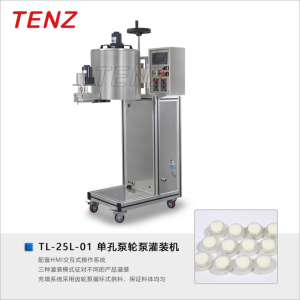

  • Target products
    Hot filling products such as lipsticks, lip balms and eyeliner creams
    Output
    20–50 pieces per minute, single operator
    Power supply
    220 50Hz 2.5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Compact size and easy operation
    2. Equipped with HMI interactive operating system
    3. Three filling modes designed for different products
    4. The filling system adopts gear pump circulating feeding to ensure uniform material
    5. Optional heated conveyor system for better filling quality
    6. Optional air cooler for faster product cooling

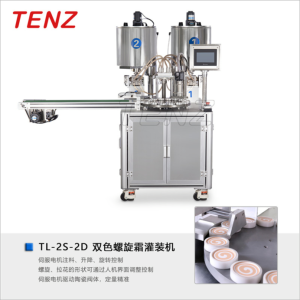

  • Target products
    Two-tone lip oil series, skin moisturizing series, BB cream series, etc.
    Output
    30–36 pcs/min for two-color products,
    42–48 pcs/min for single-color products, single operator
    Power supply
    220v 50Hz 5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Servo control system for dosing, lifting and rotation
    2. Pattern shape adjustable and controlled via HMI
    3. Quick switch between stick and pallet products, easy filling operation
    4. Supports cold filling or heated filling according to material properties
    5. Automatic discharging mechanism for convenient product takeout
