PRODUCTS

Product Showcase

Automation Equipment

Automation Equipment

  • Target products

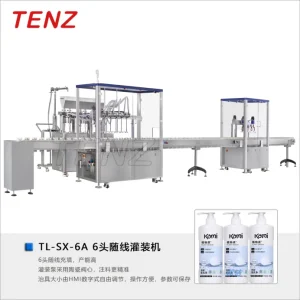

    For skincare and daily chemical products such as toners and lotions
    Output
    40-80/min
    Power supply
    220v 50Hz 6Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. 6 in-line filling heads for high output.
    2. Material suction system draws formula directly from storage tank to filling trough to reduce manual operation.
    3. Servo electric cylinder driven piston valve body.
    4. Ceramic valve core for filling pump to deliver precise dosing.
    5. Lift-type filling mode, ideal for foaming-prone products.
    6. Conveyor equipped with adjustable jigs to reduce changeover cost.
    7. Jig size digitally adjustable via touchscreen; parameters can be saved.
    8. Wireless movable HMI for convenient parameter adjustment.
    9. 2 in-line capping stations with servo-driven capping; torque adjustable.
    10. Optional robotic packaging feeding module.
  • Target products

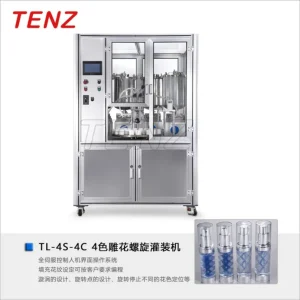

    Spiral swirl skincare products
    Output
    Actual production rate depends on formula, fill volume and pattern design
    Power supply
    220V 50Hz 3Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Fully servo-controlled with HMI operation system
    2. Filling swirl patterns can be programmed according to customer requirements
    3. Customizable vortex design, rotation start point, rotation stop position for various pattern alignment
    4. Rotary turntable with reusable molds
  • Target products

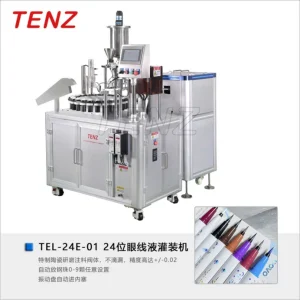

    For brush-tip eyeliner pens, sponge-tip eyeliner pens
    Output
    30–35 pieces per minute
    Power supply
    220v 50Hz 1Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Special precision ceramic dosing valve body with no dripping. Micrometer metering for high filling accuracy.
    2. Suitable for filling liquids of varying viscosity.
    3. Automatic finished product ejection, no manual take-out required.
    4. Automatic steel ball feeding; 0 to 9 balls programmable.
    5. Rotary turntable driven by DD motor for stable performance.
    6. Vibratory bowl for automatic inner plug feeding.
  • Target products

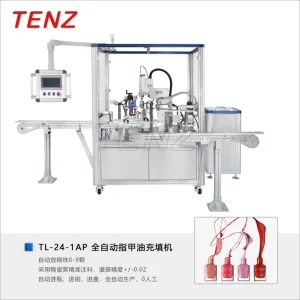

    Nail polish, nail polish remover and similar products
    Output
    30–35 bottles per minute, single operator
    Power supply
    220v 50Hz 5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Rotary automatic bottle feeding
    2. Automatic steel ball feeding, 0 to 9 balls programmable
    3. Servo-controlled high-precision ceramic filling pump with no dripping and accurate dosing
    4. Automatic brush feeding and brush alignment
    5. Servo torque control system for automatic capping
    6. Bottle and cap feeding speed automatically synchronized with filling speed. Simplified operation; independent station adjustment for maintenance and commissioning
    7. Improved feeding method over traditional pressurized tank feeding. Simply immerse the feeding tube into the storage tank
    8. All manually adjustable parts equipped with graduated scales for parameter archiving
    9. Robotic pre-capping at cap feeding station to ensure proper cap seating
    10. Safety guard doors with safety interlock system; machine stops automatically when door opens to protect operators
    11. PLC-controlled machine; HMI language can be programmed per customer requirements
