PRODUCTS

Product Showcase

Automation Equipment

Automation Equipment

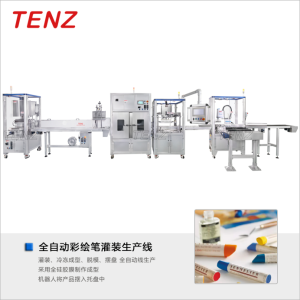

  • Target products
    Paint markers, oil pastels, etc.
    Output
    40–50 pieces per minute
    Power supply
    220v 50Hz 10.5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Two 25L fully heated double-layer SUS316L stainless steel melting tanks
    2. 10 pieces filled in one cycle
    3. Piston filling system with servo drive for precise metering
    4. Automatic mold-shifting freezing device to ensure consistent freezing time for each mold; compact size and fast freezing
    5. Fully automatic servo-controlled demolding system, automatic cap removal and placement, automatic tube clamping, tube insertion and demolding
    6. Equipped with robot palletizing mechanism to automatically load products into trays
    7. The machine is fitted with a mold return line for mold recycling and reduced manual operation

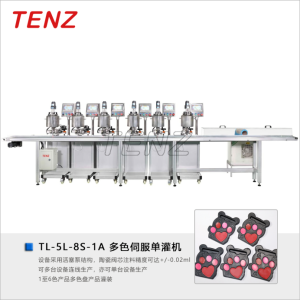

  • Target products
    Multi-color palette products, such as multi-color lip gloss palettes and multi-color concealers for hot or cold filling
    Output
    30-40pcs/min
    Power supply
    220v 50Hz 8Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Compact size and easy operation
    2. The machine adopts piston pump structure with ceramic valve core for more precise dosing
    3. Sealed tank cover design to avoid loss of volatile raw materials; the tank is a heating and stirring tank
    4. Equipped with HMI interactive operating system
    5. The machine is featured with servo lifting function
    6. Two filling modes: A. Sensor filling mode B. Foot switch filling mode
    7. Multiple machines can be connected in line to produce multi-color products; each machine can also work independently for single-color products
    8. Optional heated conveyor system to improve product filling quality
    9. Optional air cooler for faster product cooling

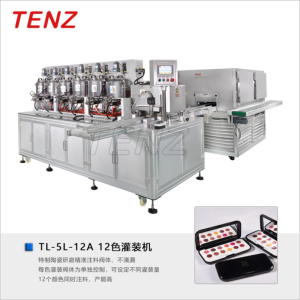

  • Target products
    Filling and freezing for multi-color lipstick palettes and concealer palettes
    Output
    15–25 boxes per minute
    Power supply
    380V 50/60Hz 6KW
    Compressed air
    0.6-0.8Mpa
    Features:
    1. Special ceramic grinding precision dosing valve body, no dripping
    2. Each color filling valve is independently controlled with adjustable filling volume setting
    3. Simultaneous dosing for 12 colors to achieve high output
    4. Matched with freezer for automatic freezing and forming after filling

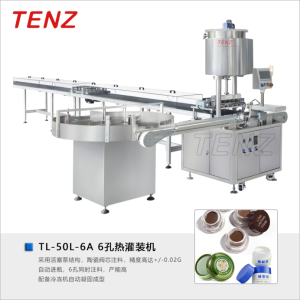

  • Target products
    Suitable for cold or hot filling production of wide-mouth containers, such as crack balm, gromwell ointment and other products
    Output
    60–70 pcs/min (reference for 20g products) 40–50 pcs/min (reference for 100g products)
    Power supply
    220 50Hz 2.5Kw
    Compressed air
    0.6-0.8Mpa
    Features:
    I. Automatic bottle feeding via sorting tray
    1. Made of SUS304 stainless steel
    2. Operators place bottles (with bottle mouths facing upward uniformly) into the sorting tray
    3. The sorting tray feeds bottles automatically into the filling station through the feeding track
    II. 6-head dosing
    1. The filling pump adopts ceramic valve core for more precise dosing and longer service life
    2. 6-nozzle filling for higher output
    3. 6 filling stations equipped with 6 sets of valve bodies driven by servo motors for more stable production
    4. Each set of valve bodies can be controlled independently and turned on/off on the screen
    5. 50L heating tank with automatic material feeding function, built-in liquid level gauge and automatic feeding port
    6. Valve body material: SUS316L + ceramic, high temperature resistant without deformation
    7. Freezing equipment can be equipped at the rear for product solidification and forming
