| Payload Under 12 kg | Degrees of Freedom 6 |
| Working Radius 1300mm | Joint Range +-180° |
| Maximum Speed 3.2m/s | Repeat Positioning Accuracy +-0.03mm |
| Output 4-6pcs/min | Number of Operators 1 |
| Power Consumption 2.5kw | Dimensions L3080W3060H1850mm |
| Weight 300kg | Voltage 220V |
| Frequency 5OHZ | Air Input 0.6-0.8Mpa |

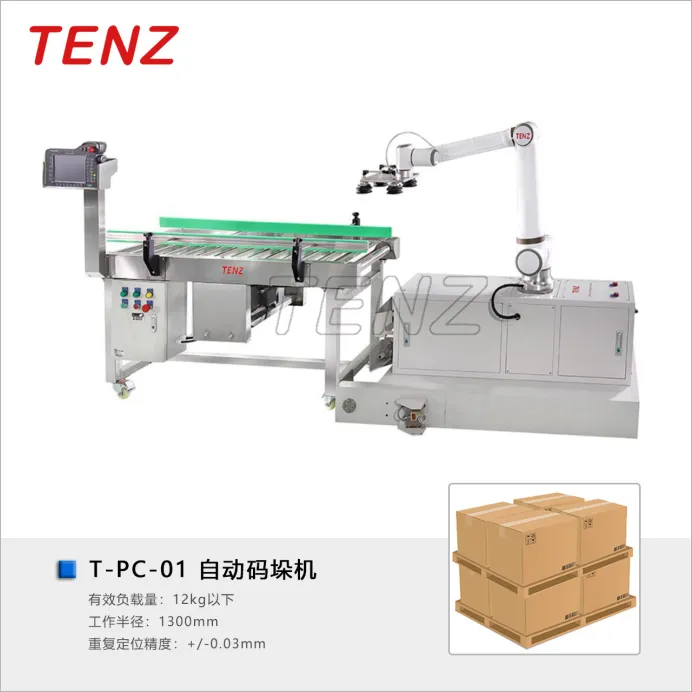

T-PC-01
