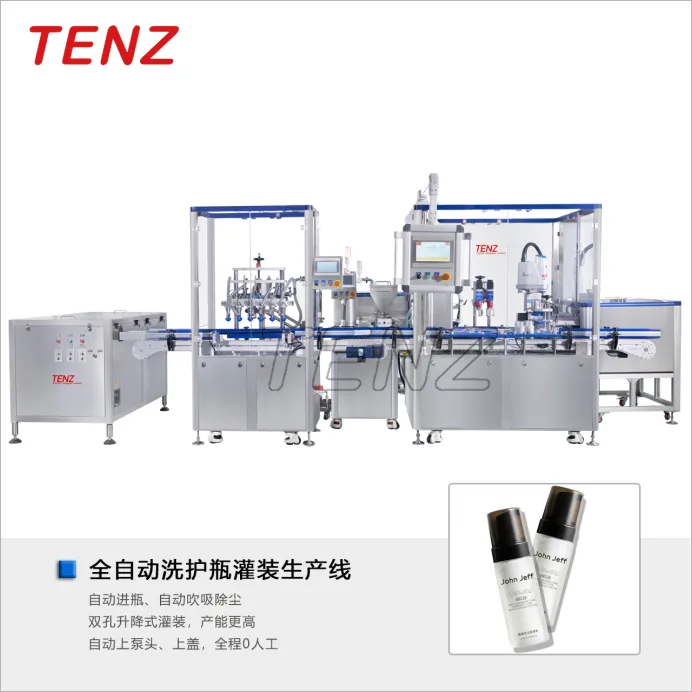

Target products
Cold filling for facial cleansing mousse, toners, lotions and similar products
Output
40-50/min
Power supply
220v 50Hz 6Kw
Compressed air
0.6-0.8Mpa
Features:
1. Bottle storage magazine with large capacity for easy bottle refilling and automatic bottle sorting.
2. Submerged blow & suck dust removal unit with 6 blow-suck nozzles. Negative-ion anti-static air (filter optional) is blown into the bottom of bottles. Meanwhile, the bottle mouth pressing block activates vacuum to suck out dust. Equipped with bottle mouth positioning device.
3. Integrated filling & capping machine adopts dual-station bottle in/out design: dual-station filling, dual-station cap picking & placing, combined with servo automatic capping assembly.
4. 4 filling heads; each bottle undergoes two filling cycles for higher output.
5. Servo motor driven filling valve body for superior metering accuracy. Adjustable filling speed for different formulas to effectively reduce bubble generation.
6. Cart-type filling system. All valve connections use quick-fit fittings for easy disassembly and fast product changeover.
7. Low-noise vibratory cap sorter for automatic cap sorting; dual-station robotic cap picking.
8. Dual-station robot for pump pre-capping. Servo-controlled capping torque, adjustable with one tap on touchscreen.
9. Missing-cap & crooked-cap detection and rejection function to guarantee pass rate.
